Tesla Chief Scientist Jeff Dahn: How NMC Batteries Maintain 80% Capacity Retention After 8 Years of Cycling?
Source: “Battery Class” (Official WeChat Account)
Lithium-ion batteries serve as the core components for Electric Vehicles (EVs) and Grid-scale Storage Systems, where their cycle life directly dictates the Total Cost of Ownership (TCO). While the industry generally perceives high-nickel cathode materials, such as NMC, as having inferior cycling stability, recent breakthroughs from Jeff Dahn’s research group at Dalhousie University have challenged this conventional wisdom.
The study conducted a systematic decoupling analysis on NMC/Graphite pouch cells with cycling durations ranging from 3 to 8.2 years. The results revealed that optimized Single-Crystal NMC532/Artificial Graphite cells maintained 80% capacity retention even after 8.2 years of continuous cycling, with no significant degradation observed in either the cathode crystal structure or the electrolyte. Published in the Journal of The Electrochemical Society, this research utilizes multi-dimensional characterization to unveil the degradation mechanisms of ultra-long-life batteries for the first time, providing a critical theoretical foundation for designing lithium-ion batteries with a service life exceeding 20 years.
I. Core Publication Details
- Paper Title: Post-Mortem Analysis of NMC/Graphite Pouch Cells with Exceptional Capacity Retention After up to 8 Years of Cycling.
Journal: Journal of The Electrochemical Society (JES)
DOI: 10.1149/1945-7111/ae502b
Core Objective: This study aims to elucidate the underlying mechanisms that enable specific NMC/Graphite cells to maintain exceptional capacity retention over 8 years of continuous cycling, whereas conventional batteries typically reach their End-of-Life (EoL) after only a few thousand cycles. By conducting a comparative analysis of cells with varying cathode chemistries (NMC532, NMC811, Ni83), electrolyte formulations, and cycling protocols (including temperature, C-rate, and voltage windows), the research reveals that the primary degradation mode for ultra-long-life batteries is Lithium Inventory Loss (LLI), rather than the degradation of active materials.
II. Experimental Design and Long-term Cycling Performance
The study evaluated eight groups of NMC/Graphite pouch cells. The cathode materials included both Single-Crystal (SC) and Baseline Polycrystalline (BM) structures. The electrolyte systems consisted of either LiPF6 or LiFSI salts, combined with advanced additive packages such as VC (Vinylene Carbonate) and FEC (Fluoroethylene Carbonate).
All cells were subjected to cycling at temperatures of 20°C or 40°C, with charge/discharge rates ranging from C/3 to 1C. The testing was conducted within a voltage window of 3.0V to 4.3V. The experimental duration spanned from a minimum of 3 years (4,300 cycles) to a maximum of 8.2 years (22,000 cycles), representing one of the most extensive longitudinal battery studies to date.

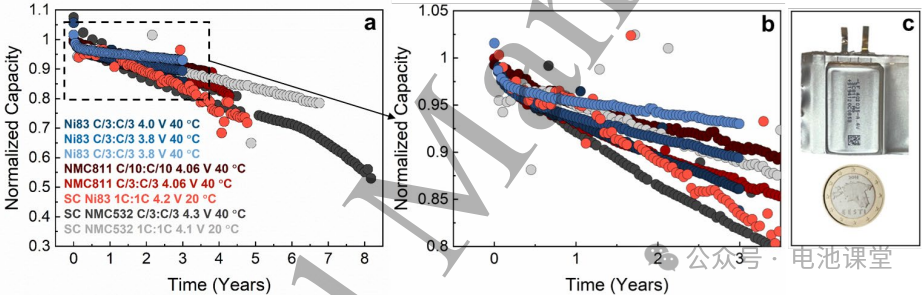

Figure 1c displays the physical dimensions of the pouch cells, highlighting a compact design that served as the reliable foundation for this extensive multi-year longitudinal study.
Notably, even with polycrystalline NMC811 as the cathode, cells cycled under mild conditions (e.g., 4.06V and 20°C) maintained 86% capacity after 4.3 years. This evidence demonstrates that the intrinsic stability of the material is not the sole determinant of battery longevity; rather, the operating environment and testing protocols play an equally decisive role.
III. Precise Identification of Capacity Fade Mechanisms
To resolve the root causes of degradation, the research team employed Differential Voltage Analysis (dV/dQ) to quantify Lithium Inventory Loss (LLI) and Cathode Mass Loss.
The results illustrated in Figure 4 indicate that the capacity fade in long-life cells is primarily driven by Lithium Inventory Loss (represented by the gray regions), rather than the loss of cathode active material (represented by the white regions). For instance, after 8.2 years of cycling, the Single-Crystal NMC532 cell (ID: 54273) exhibited negligible cathode mass loss, with lithium depletion identified as the dominant factor limiting its cycle life.
This conclusion was further validated through XRD (X-ray Diffraction) and XPS (X-ray Photoelectron Spectroscopy). As shown in Figure 5, the XRD patterns of the Single-Crystal NMC532 cathode after 8.2 years of cycling remain highly consistent with the pristine electrode. Specifically, the clear Cu Kα1/Kα2 splitting of the (108) and (110) diffraction peaks indicates that the crystallographic integrity of the layered structure is perfectly preserved, with no detectable rock-salt phase formation even after near-decade-long operation.

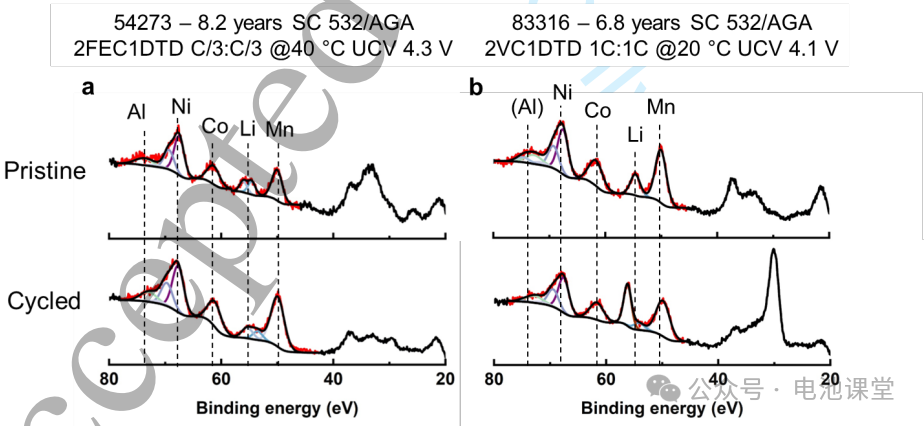

Surface chemistry analysis (Figure 6) further confirms the exceptional stability of the cathode. The binding energy of the Ni 3p orbitals showed no significant shift, indicating that no substantial amount of Ni2+ was generated after cycling. This stability effectively prevents surface passivation, which is a common cause of impedance growth.
Furthermore, SEM cross-sectional imaging (Figure 7) reveals that the Single-Crystal cathode only developed minor micro-cracks under extreme conditions (40°C, 4.3V). In contrast, cells cycled under mild conditions exhibited almost no structural damage, reinforcing the superiority of single-crystal morphology in maintaining particle integrity.
IV. Long-term Evolution of Electrolyte and Anode

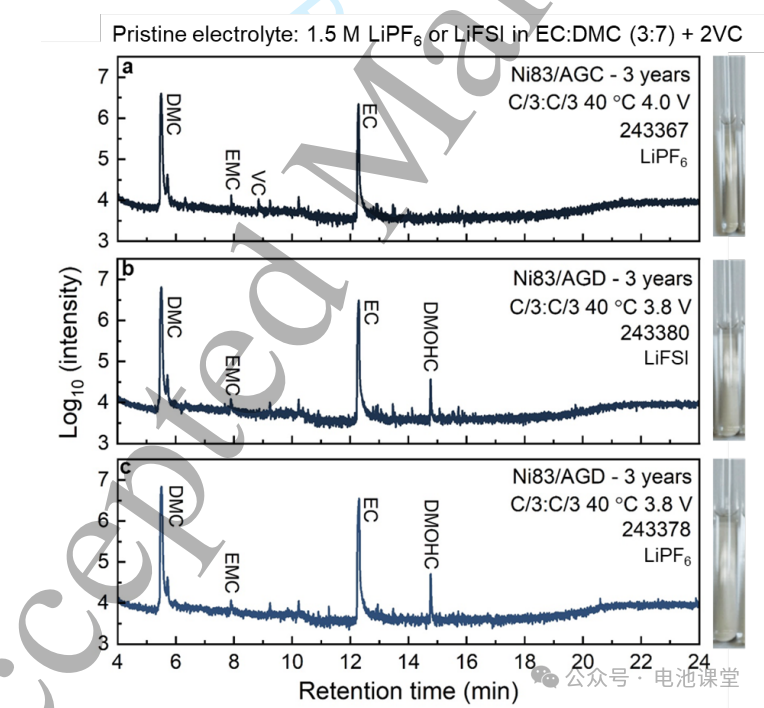

The analytical results of the electrolyte chemistry were particularly striking. Utilizing GC-MS (Gas Chromatography-Mass Spectrometry) and qNMR (Quantitative Nuclear Magnetic Resonance) (Figures 10-15), the researchers discovered that the electrolyte remained transparent even after 8.2 years of cycling. The primary degradation products identified were only trace amounts of EMC (Ethyl Methyl Carbonate) and DMOHC.
As shown in Figure 13c, residual VC (Vinylene Carbonate) additives were still detectable in several cells. This phenomenon may be attributed to a side reaction involving the dehydrogenation of EC (Ethylene Carbonate) on the cathode surface, which potentially regenerates VC and contributes to the sustained stability of the interface.

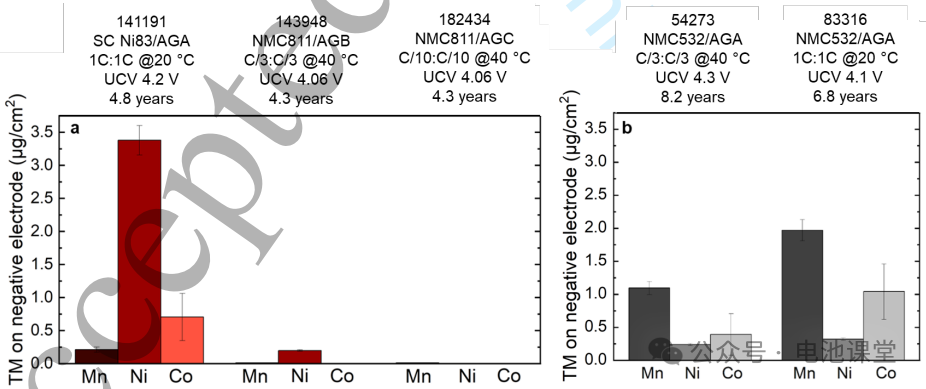

The extent of transition metal (TM) dissolution was found to be extremely low (Figure 8). The total amount of Mn, Ni, and Co deposited on the anode did not exceed 3.4 μg/cm², demonstrating no significant impact on electrochemical performance.
Furthermore, XRD analysis of the graphite anode (Figure 9) revealed that both the interplanar spacing (d002) and the turbostratic disorder (Pr) remained unchanged after long-term cycling. This confirms the exceptional structural stability of the artificial graphite utilized in these cells, validating its suitability for decade-long energy storage applications.
V. Design Insights for Ultra-Long-Life Batteries
The most groundbreaking discovery of this research originates from the long-term operational data of the cells (Figure 16). The Single-Crystal NMC532/AGA cells, cycled at 20°C and 4.1V, maintained a capacity retention exceeding 85% after 7.5 years. Based on these trajectories, the service life is projected to reach 10 years (or 32,000 cycles).
If we calculate based on an average EV range of 250 miles per cycle, this equates to an extraordinary total mileage of 7.5 million miles (approximately 12 million kilometers)—sufficient to circumnavigate the Earth 300 times. This data proves that with optimized materials and operating protocols, lithium-ion technology is already capable of exceeding the requirements of even the most demanding automotive and energy storage applications.
In comparison with LFP/Graphite cells (Figure 17), the NMC system demonstrates a superior balance of volumetric energy density (600 Wh/L) and cycle life metrics. The authors emphasize that solvent evaporation in pouch cells remains a primary limiting factor for service life. If these chemistries were implemented in cylindrical or prismatic formats—which offer superior hermetic sealing—the operational lifespan could potentially be extended even further.
VI. Conclusion and Future Outlook
This study employs multi-scale characterization to unveil the degradation mechanisms of ultra-long-life NMC/Graphite cells. The findings identify Lithium Inventory Loss (LLI) as the primary driver of capacity decay, while the degradation of the cathode structure, electrolyte, and anode has been successfully suppressed to negligible levels. This discovery challenges the conventional perception that high-nickel cathodes are unsuitable for long-life applications, proving that through the optimization of materials (such as Single-Crystal NMC) and operating protocols (lower temperatures and restricted voltage windows), lithium-ion batteries can achieve a service life spanning decades.
Future research will focus on elucidating the precise correlation between solvent evaporation and lithium loss, alongside the exploration of even more efficient electrolyte formulations. Furthermore, this study provides a robust theoretical foundation for direct battery recycling—as the cathode and anode materials remain structurally intact even after 8 years of cycling, they can be directly repurposed for second-life applications, significantly reducing the total Life Cycle Cost (LCC).
