Top 5 Most Common Reference Electrodes in Electrochemistry
Source: WeChat Official Account “Electrochemistry and Electrocatalysis”

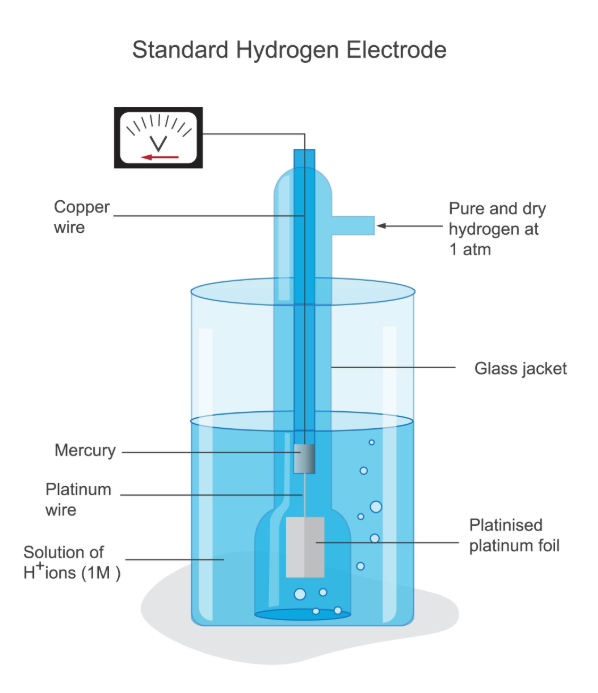

One of the 5 most common reference electrodes in electrochemistry: Standard hydrogen electrode (SHE / NHE)
Composition: A platinum sheet coated with platinum black is immersed in an acidic solution with a hydrogen ion activity of 1 mol/L, and pure hydrogen gas at a pressure of 1 atm is continuously introduced.
Characteristics: It is the absolute standard for all electrode potentials. Its standard electrode potential is arbitrarily defined as 0.000 V at any temperature.
Applicable Systems: Primarily used for theoretical research and calibration of other reference electrodes. Due to the need for a continuous supply of flammable hydrogen gas and the susceptibility of platinum electrodes to poisoning, it is rarely used directly in daily practical operations.
Two of the 5 most common reference electrodes in electrochemistry: Saturated calomel electrode (SCE)
Composition: Consists of metallic mercury (Hg), calomel (mercurous chloride, Hg₂Cl₂), and a saturated potassium chloride (KCl) solution.
Characteristics: Highly stable potential with good reproducibility. At 25°C, the potential relative to the standard hydrogen electrode is approximately +0.241 V.
Applicable Systems: Widely used in neutral and acidic aqueous solutions.
Precautions: Due to the presence of highly toxic mercury, and the potential instability caused by the disproportionation reaction of calomel above 80°C, it is gradually being replaced by Ag/AgCl electrodes in many fields. Furthermore, it contains chloride ions and is not suitable for systems sensitive to chloride ions.

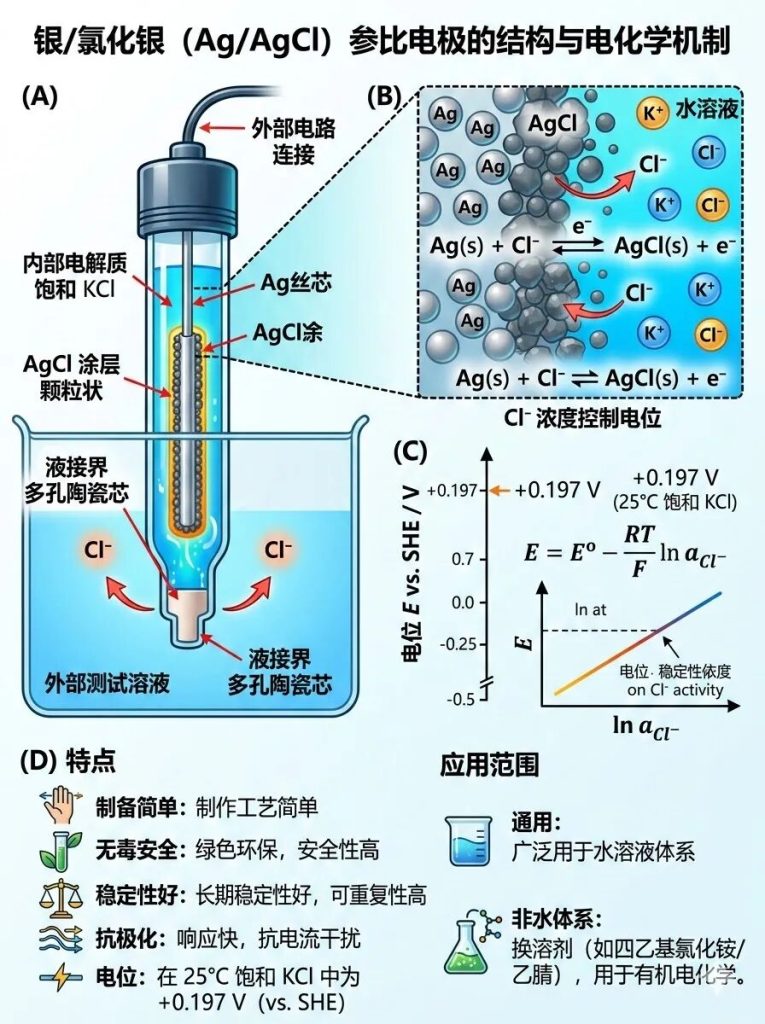

Three of the 5 most common reference electrodes in electrochemistry: Silver/silver chloride electrode (Ag/AgCl)
Composition: A silver wire coated with a layer of silver chloride (AgCl) is immersed in a potassium chloride (KCl) solution of known concentration (usually saturated, 3 M, or 1 M).
Characteristics: Simple to prepare, non-toxic, highly stable, and with strong resistance to polarization. At 25°C (in saturated KCl), its potential is approximately +0.197 V (vs. SHE).
Applicable Systems: Currently the most widely used reference electrode, extensively used in aqueous systems. By changing the internal solvent (e.g., using an acetonitrile solution of tetraethylammonium chloride), a reference electrode for non-aqueous systems can also be prepared.

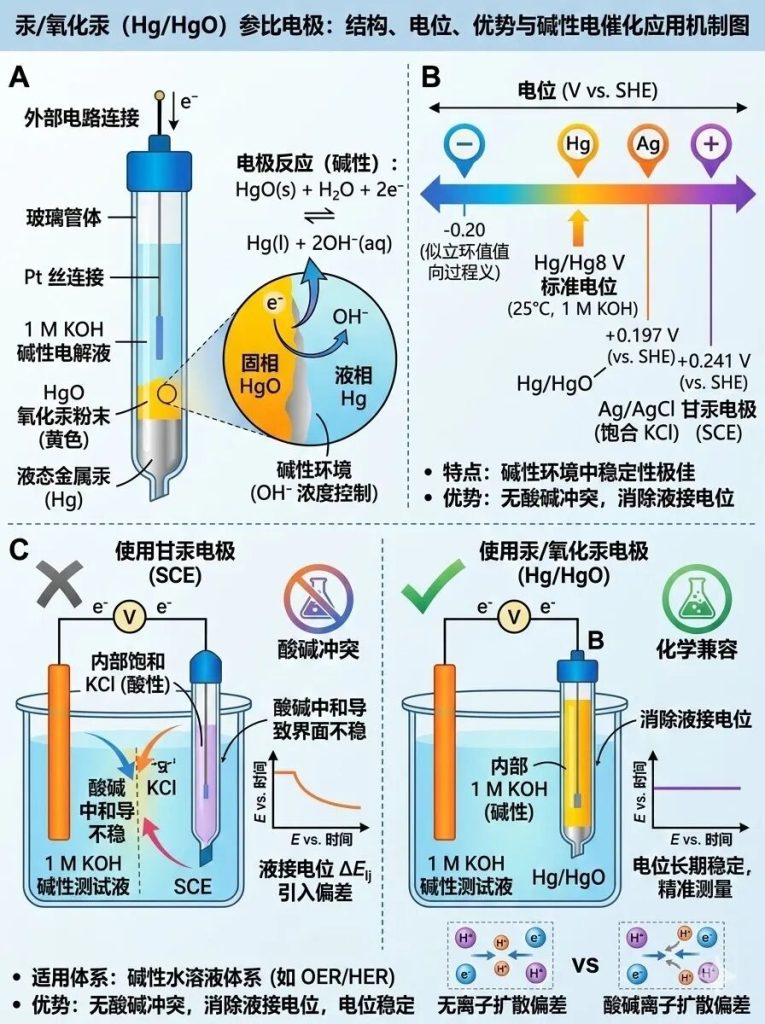

Four of the 5 most common reference electrodes in electrochemistry: Mercury/mercuric oxide electrode (Hg/HgO)
Composition: Consists of metallic mercury (Hg), mercuric oxide (HgO), and an alkaline solution (typically 1 M KOH or 1 M NaOH).
Characteristics: Extremely stable in alkaline environments. At 25°C (in 1 M KOH), its potential is approximately +0.098 V (vs. SHE).
Applicable Systems: Specifically designed for alkaline aqueous solutions (e.g., OER/HER testing in electrocatalysis).
Advantages: Its use in alkaline test solutions effectively eliminates the liquid junction potential, avoiding potential drift caused by acid-base neutralization as seen with saturated calomel electrodes.

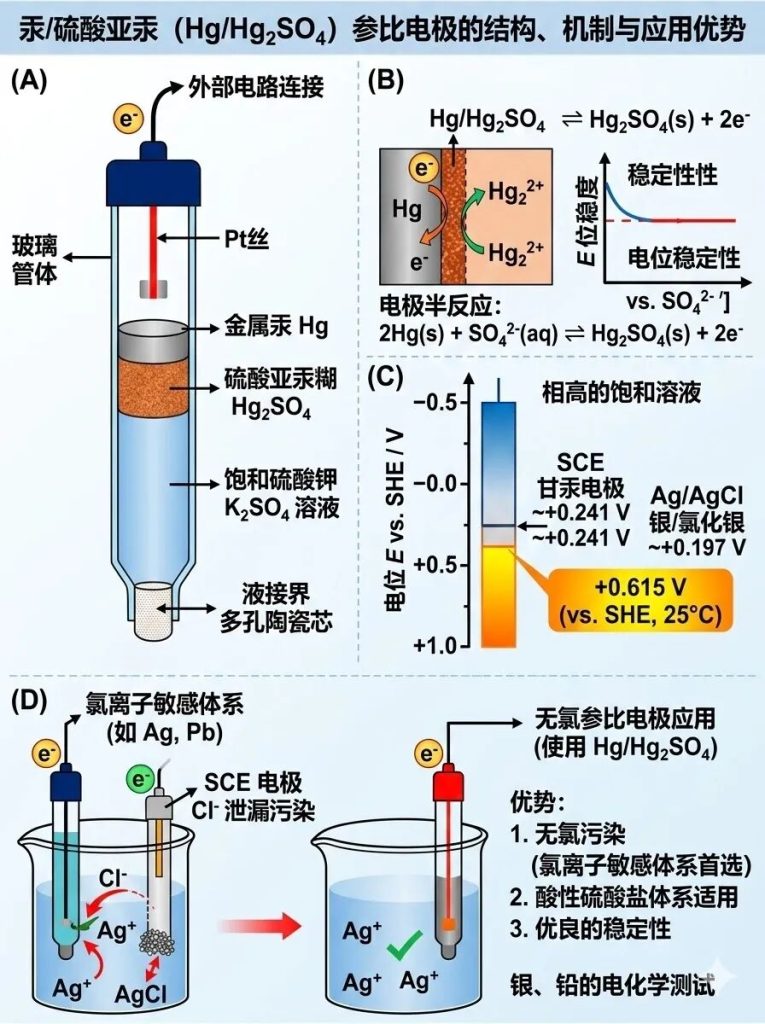

Five of the 5 most common reference electrodes in electrochemistry: Mercury/mercurous sulfate electrode (Hg/Hg₂SO₄)
Composition: Consists of metallic mercury (Hg), mercurous sulfate (Hg₂SO₄), and a saturated potassium sulfate (K₂SO₄) solution.
Characteristics: At 25°C, its potential is approximately +0.615 V (vs. SHE).
Applicable Systems: Primarily used in acidic sulfate systems.
Advantages: When your test system is highly sensitive to chloride ions (Cl⁻), or when the working electrode reacts with chloride ions (e.g., when testing the electrochemical behavior of silver and lead), this chloride-free reference electrode is typically chosen to prevent chloride ion leakage from the SCE or Ag/AgCl electrode and contamination of the solution.
